Description

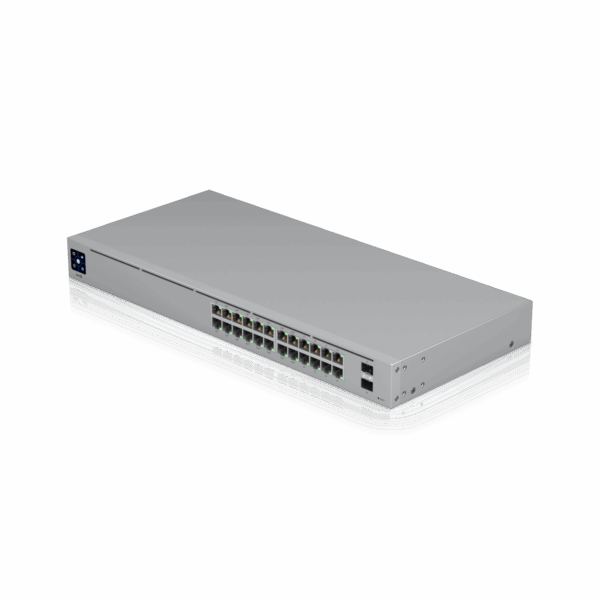

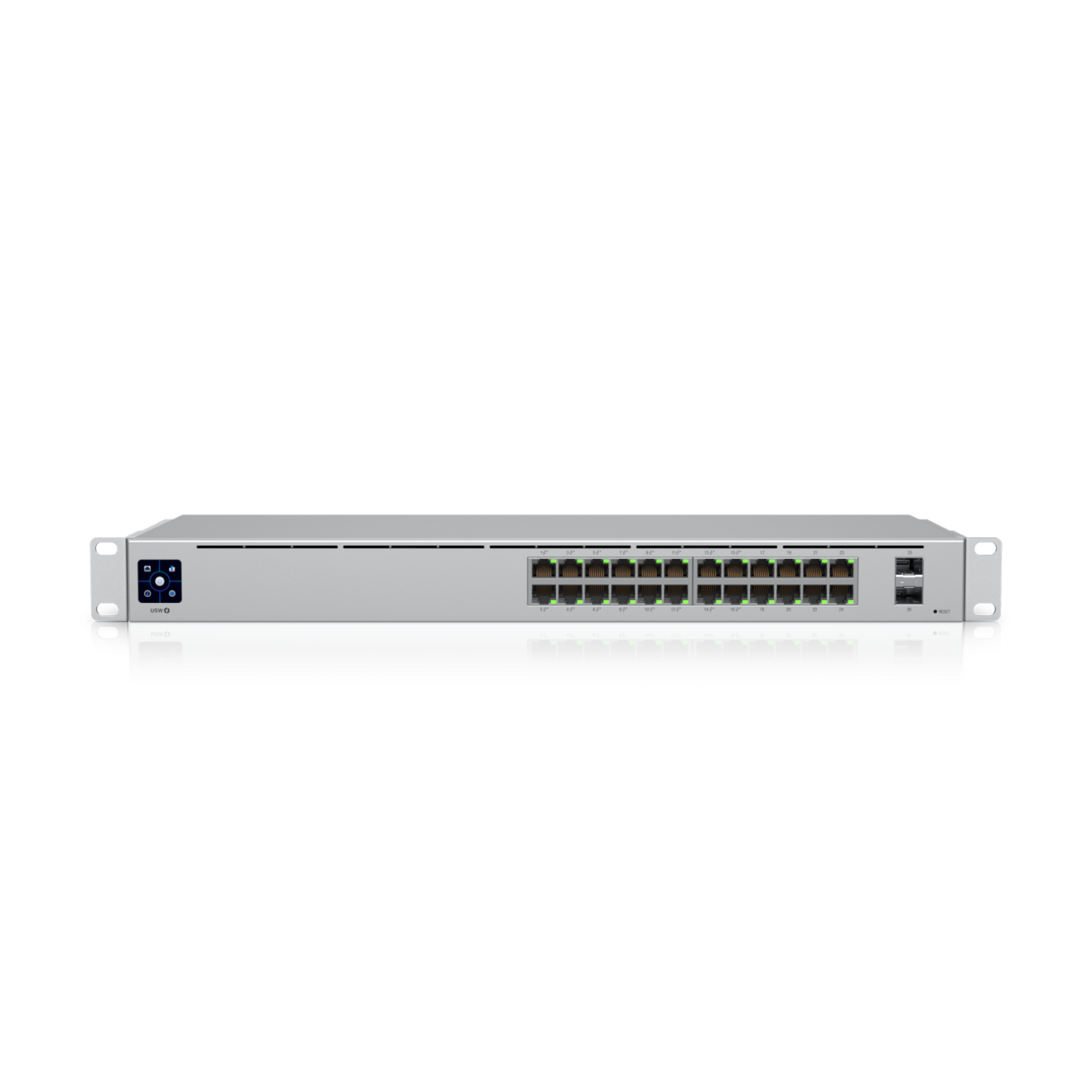

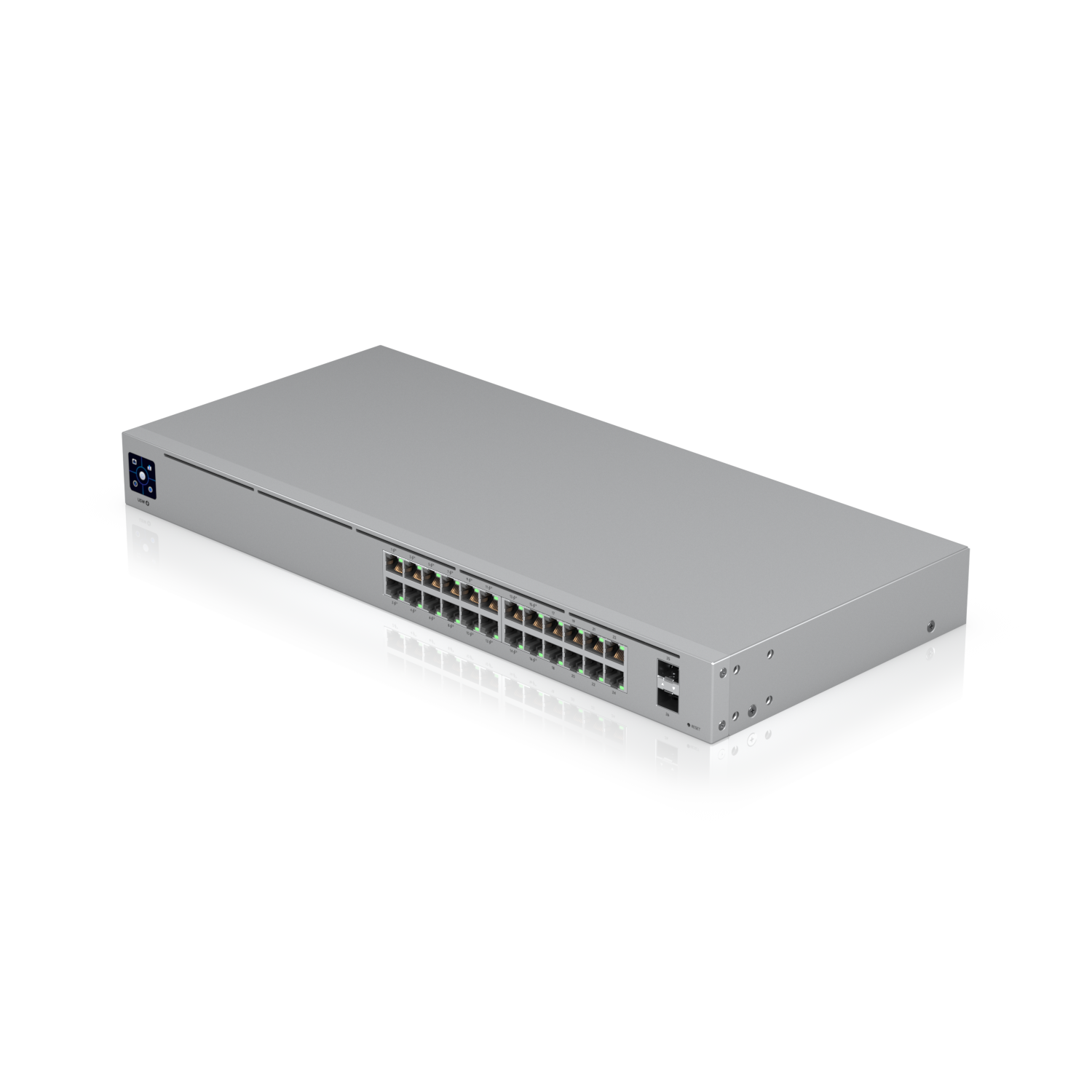

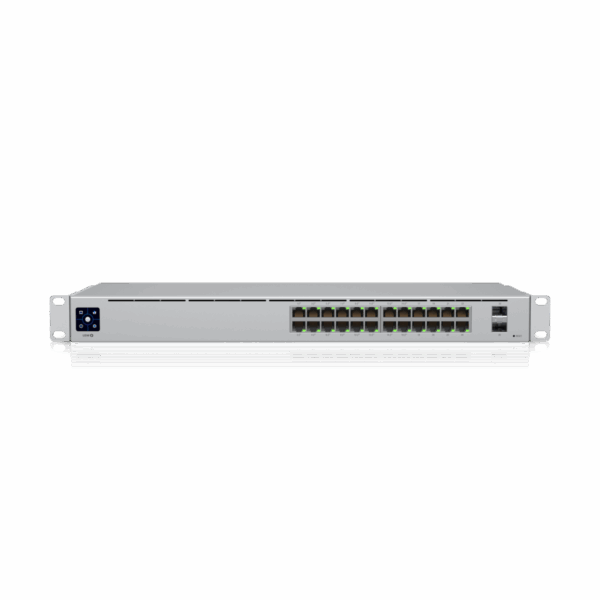

A 24-port, Layer 2 PoE switch with a fanless cooling system.
Overview
Dimensions: 442 x 200 x 44 mm

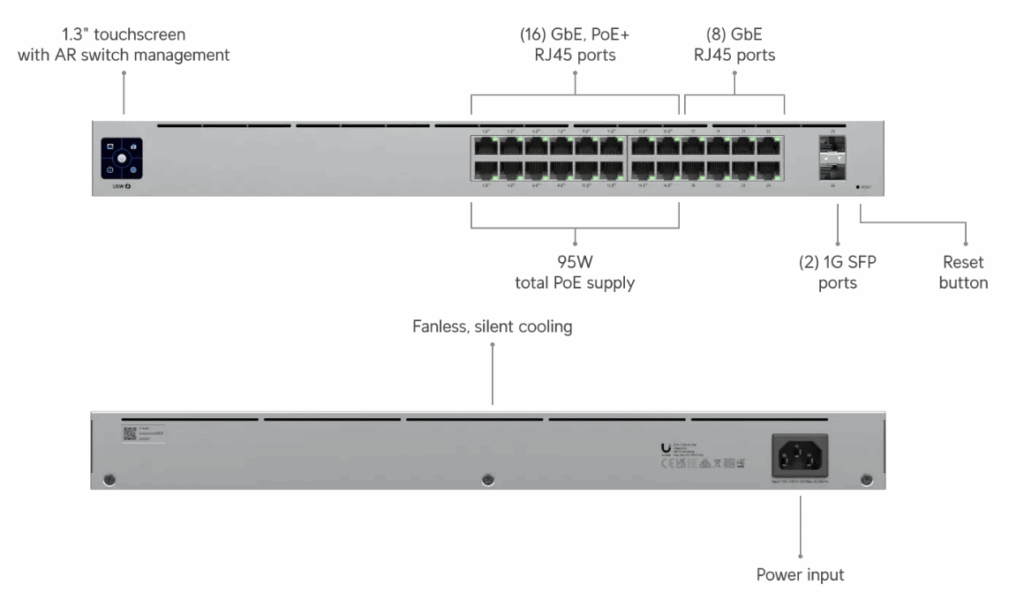

Port Layout:
1 GbE RJ45: 24 (16 PoE+) (1G/100M/10M)
1G SFP: 2
Max. PoE Output: Up to PoE+
Total PoE Availability: 95W
Form Factor: Rack mount (1U)
Performance
Switching Capacity: 52 Gbps
Total Non-Blocking Throughput: 26 Gbps
Forwarding Rate: 39 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 8,000
Packet Buffer Size: 0.5 MB
Layer 2 Features
LACP Port Aggregation ✓
STP & RSTP ✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓
IGMP Snooping ✓
802.1X Control ✓
MAC-Based ACLs & Device Isolation ✓
DHCP Snooping & Guarding ✓
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
MAC Address Blocking ✓
IP-Based ACLs & Network Isolation ✓
MAC-Based Port Restriction ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
LLDP-MED ✓
Voice VLAN ✓
Loop Protection ✓
Hardware
PoE Ports:
PoE+: 16
Max. PoE Wattage per Port by PSE:
PoE: 15.4W
PoE+: 32W
Max. Power Consumption: 25W (Excluding PoE output) 120W (Including PoE Output)
Power Method: Universal input, 100—240V AC, 50/60 Hz
Power Input Method: AC input
Power Supply: AC/DC, internal, 120W
Supported Voltage Range: 100—240V AC
Management: Ethernet AR
Heat Dissipation (Excluding PoE Output): 85.3 BTU/hr
Weight:
Without mounting brackets: 3 kg (6.6 lb)
With mounting brackets: 3.1 kg (6.8 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 400~1200 mm (15.7-47.2″)
LCM Display: 1.3″ touchscreen
ESD/EMP Protection: Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant ✓
Certifications: CE, FCC, IC, Anatel
Software
Application Requirements:
UniFi Network: Version 7.2.94 and later
